Comments from Sierra Leone - Global Water Group THE FOUNTAIN OF LIFE PROJECT



DISASTER RELIEF - FRESH WATER EMERGENCY WATER PURIFICATION EQUIPMENT

EM (Emergency) Series

PRODUCT CODE

BASIC UNIT DESCRIPTION

POWER

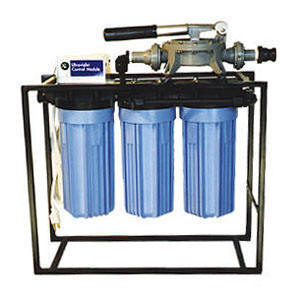

EM-60GPH-HP Produces 60 to 90 gallons per hour of Purified Water
(25 lbs)
Hand Pump for water processing.
110V needed for Ultra-Violet*
EM-60GPH-PWR Produces 60 to 90 gallons per hour of Purified Water.
(35 lbs)
Pump for water processing.

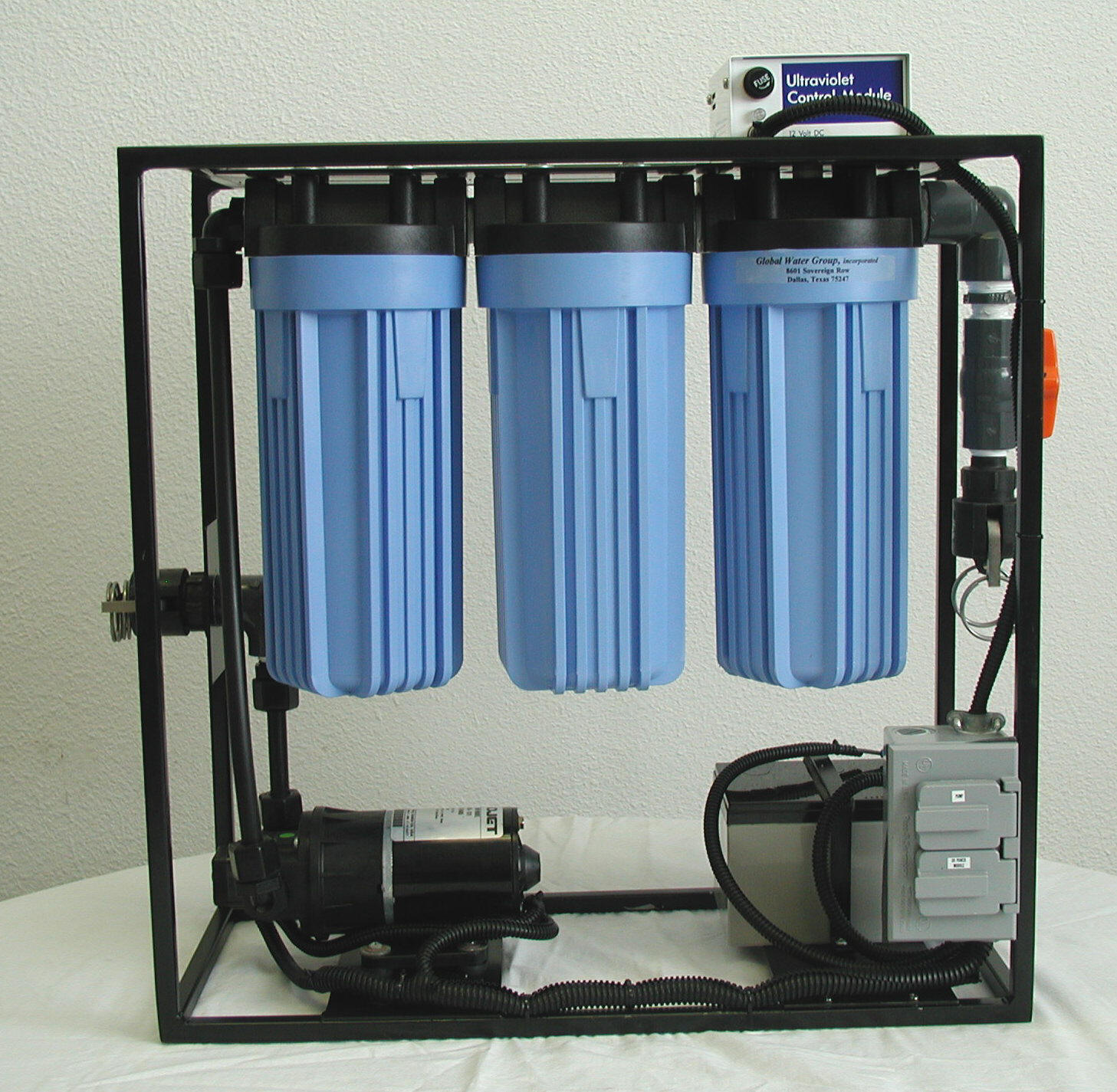

EM-60GPH-BAT Produces 60 to 90 gallons per hour of Purified Water
(45 lbs)
Battery operated Motor/Pump (12V, 9 amps) for water processing and for UV. Battery would last about 1 ½ hours before re-charging**

EM - 4-POD Series

PRODUCT CODE

BASIC UNIT DESCRIPTION

POWER

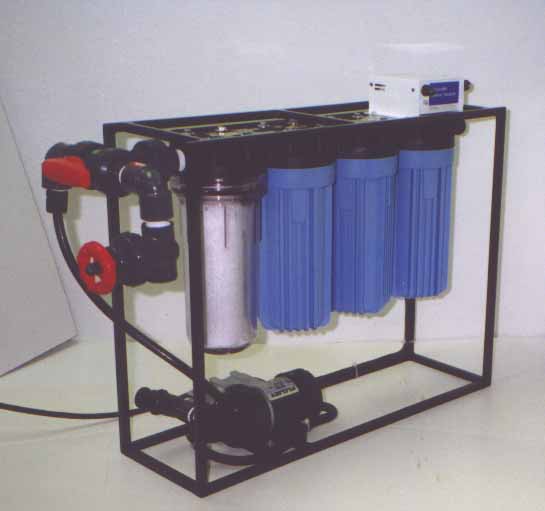

EM-4-POD-PWR Produces 120 gallons per hour (2 GPM) of Purified Water

(40 lbs)

A/C System. Electric Motor (110V*) for water processing. 1-Micron for removal of parasites; Global' s proprietary media housing for removal of hazardous chemicals; and Ultra-Violet (UV) for killing bacteria and viruses.

VILLAGE Series

PRODUCT CODE

BASIC UNIT DESCRIPTION

POWER

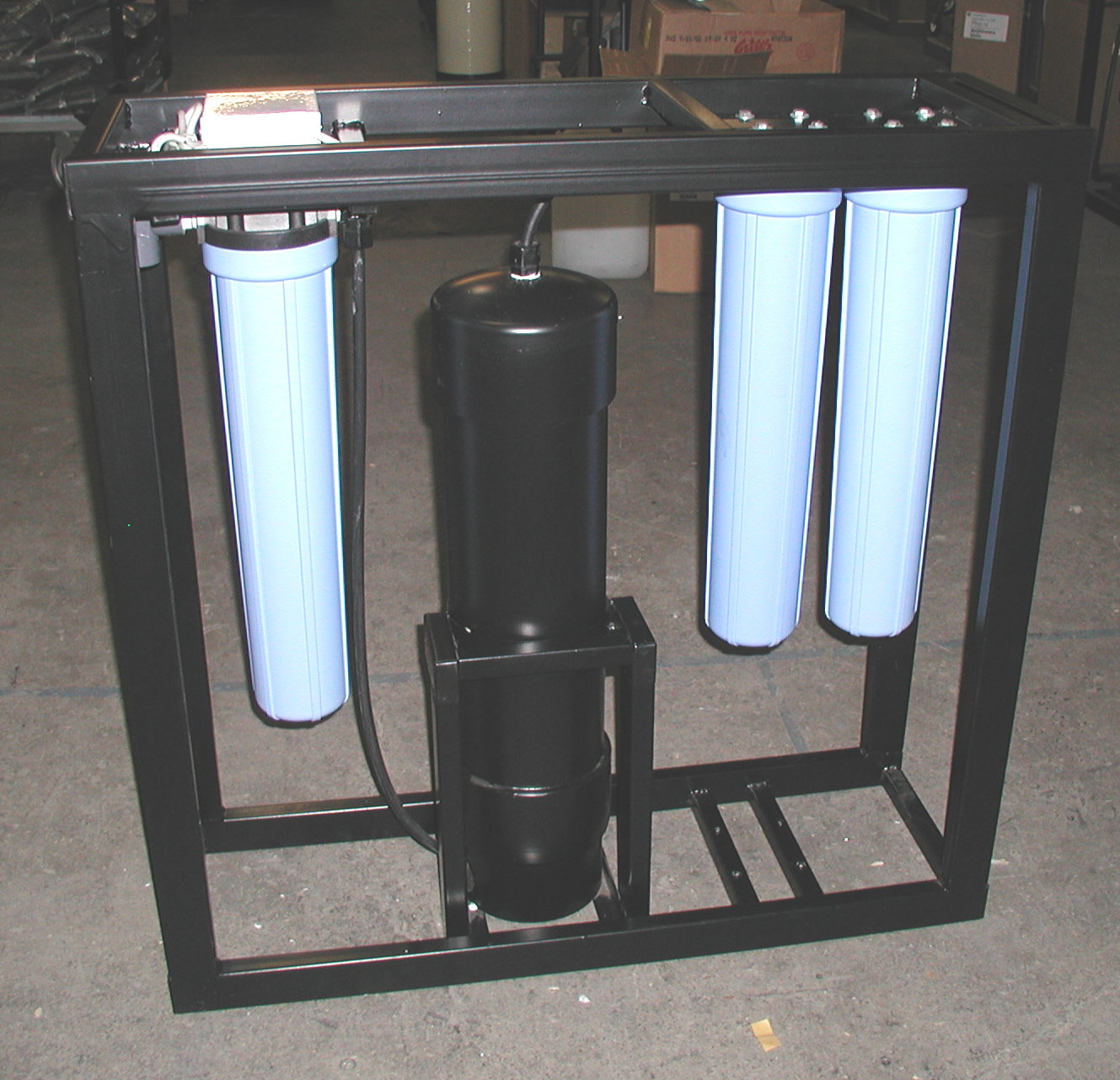

LS3-VILLAGE-200C Produces 180 to 200 gallons per hour of Purified Water
(90 lbs)
110V/220V Option 60 Hz or 50Hz
Minimal controls (on/off) designed for emergencies or in-line shore pressure.
LS3-VILLAGE-200D Produces 360 gallons per hour of Purified Water.
(110 lbs)
110V/220V Option 60 Hz or 50Hz
Minimal controls (on/off) designed for emergencies or in-line shore pressure.

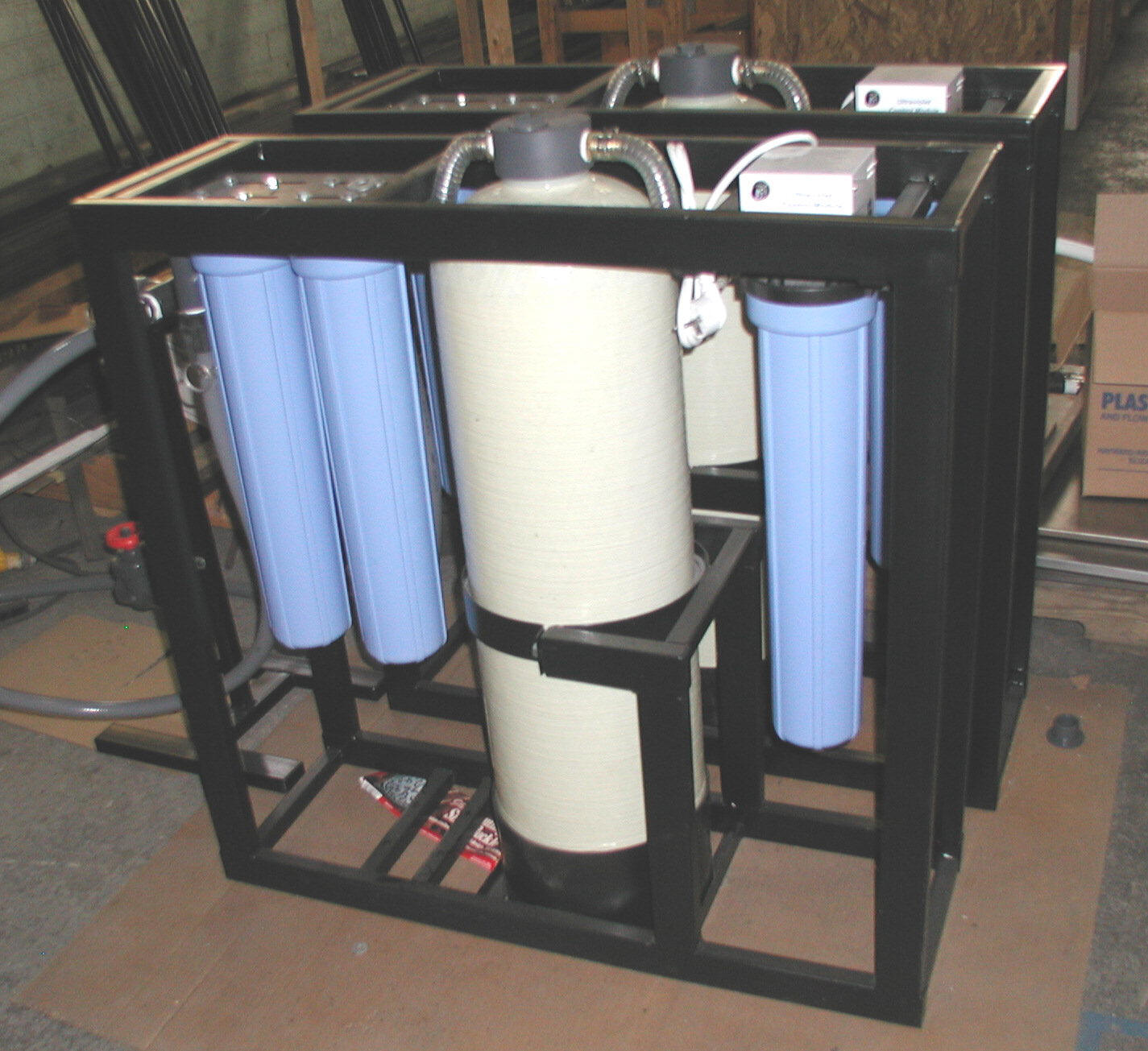

LS3-VILLAGE-200E Produces 600 gallons per hour of Purified Water.
(130 lbs)
110V/220V Option 60 Hz or 50Hz
Minimal controls (on/off) designed for emergencies or in-line shore pressure.

Trailer Series

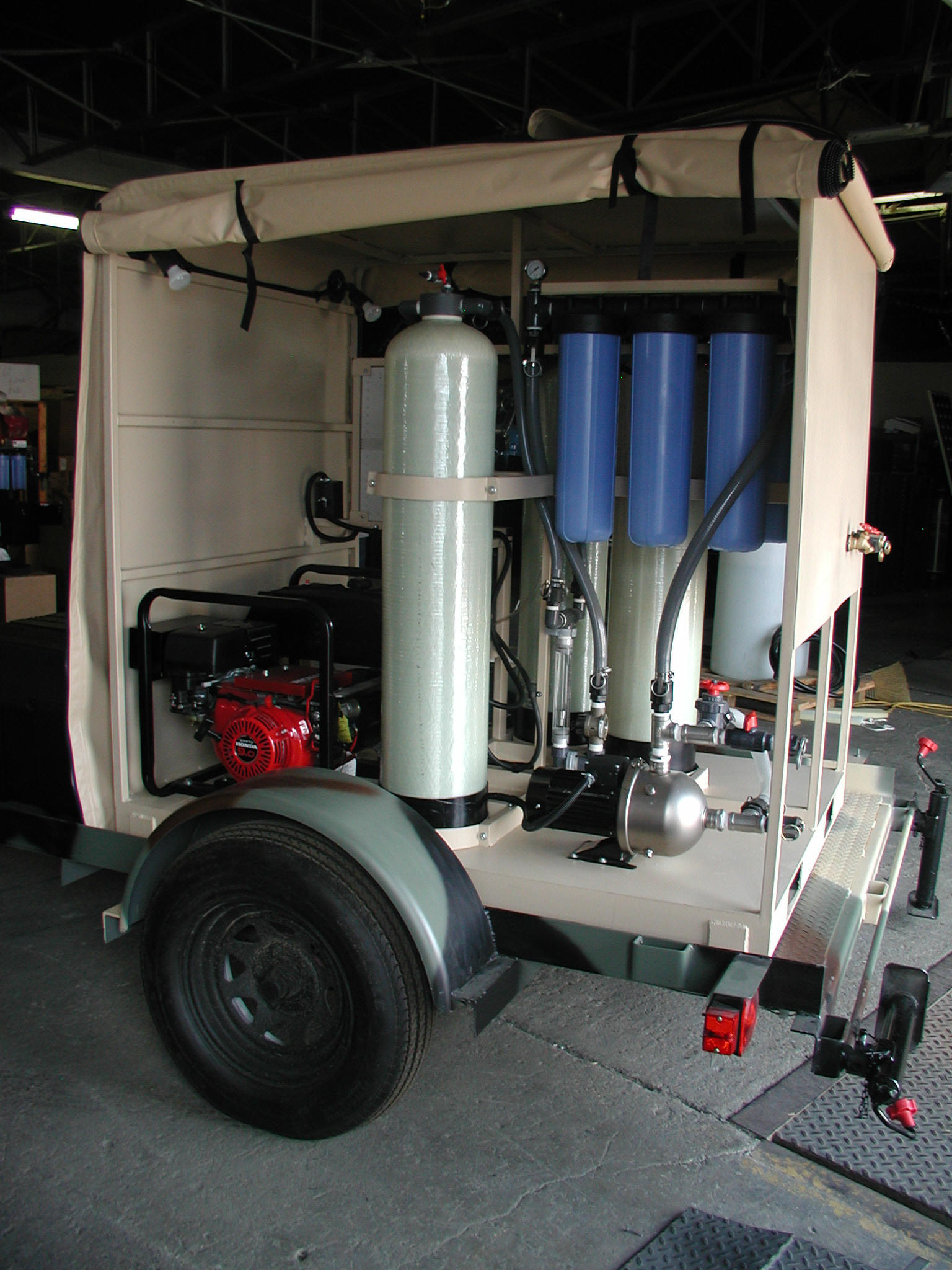

LS3-M15000 (Trailer Mounted) Produces 20,000 gallons per day (800 GPH) of Purified Water (Trailer mounted platform) Trailer mounted platform. Gas Generator or Diesel option for water processing. 1-Micron for removal of parasites; Global' s proprietary media housing for removal of hazardous chemicals; and Ultra-Violet (UV) for killing bacteria and viruses.

MOBILE DESALINATION EQUIPMENT

For processing fresh water, brackish water or seawater up to 50,000 ppm.:

PRODUCT CODE

BASIC UNIT DESCRIPTION

POWER


LS3-DESAL-M25GPH

(Carrying case)

Produces 25 gallons per hour (.4 GPM) of Purified Water Compact mobile carrying cases or platform mounted.

Salt rejection 98.5% with TDS 50,000 ppm. RO processing for salt removal and/or additional purification with Global' s fresh water process of 1-Micron for removal of parasites; Global' s proprietary media housing for removal of hazardous chemicals; and Ultra-Violet (UV) for killing bacteria and viruses.

LS3-DESAL-M75GPH

(Carrying case)

Produces 75 gallons per hour (1.25 GPM) of Purified Water Compact mobile carrying cases or platform mounted.

Salt rejection 98.5% with TDS 50,000 ppm. RO processing for salt removal and/or additional purification with Global' s fresh water process of 1-Micron for removal of parasites; Global' s proprietary media housing for removal of hazardous chemicals; and Ultra-Violet (UV) for killing bacteria and viruses.

LS3-DESAL-M300GPH
(Trailer option)
Produces 300 gallons per hour

(5 GPM) of Purified Water from seawater or 300 to 720 GPH (5 to 12 GPM) from fresh water.

AAR container, platform mounted or trailer mounted.

Salt rejection 98.5% with TDS 50,000 ppm. RO processing for salt removal and/or additional purification with Global' s fresh water process of 1-Micron for removal of parasites; Global' s proprietary media housing for removal of hazardous chemicals; and Ultra-Violet (UV) for killing bacteria and viruses.

LS3-DESAL-M600GPH
(Trailer option)
Produces 600 gallons per hour
(10 GPM) of Purified Water from seawater or 600 to 1400 GPH (10 to 23 GPM) from fresh water.
(Trailer mounted platform)
AAR container, platform mounted or trailer mounted. Diesel Generator. Salt rejection 98.5% with TDS 50,000 ppm. RO processing for salt removal and/or additional purification with Global' s fresh water process of 1-Micron for removal of parasites; Global' s proprietary media housing for removal of hazardous chemicals; and Ultra-Violet (UV) for killing bacteria and viruses.
